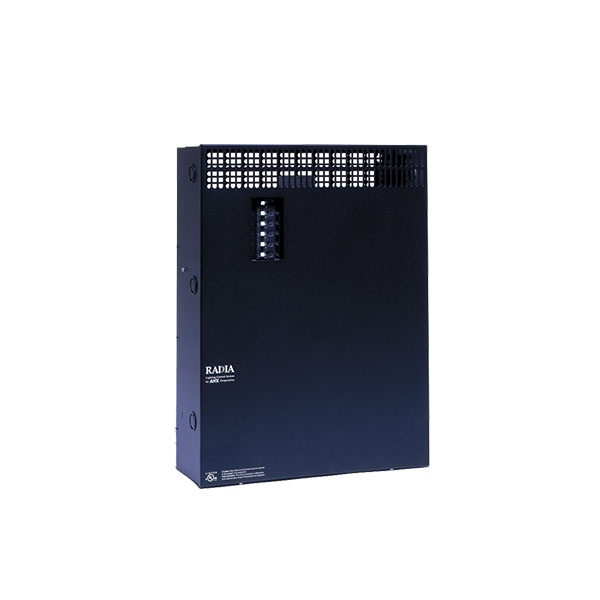

AMX RDA-ENC6B Radia 照明 6 格装置（含 6 个断路器）

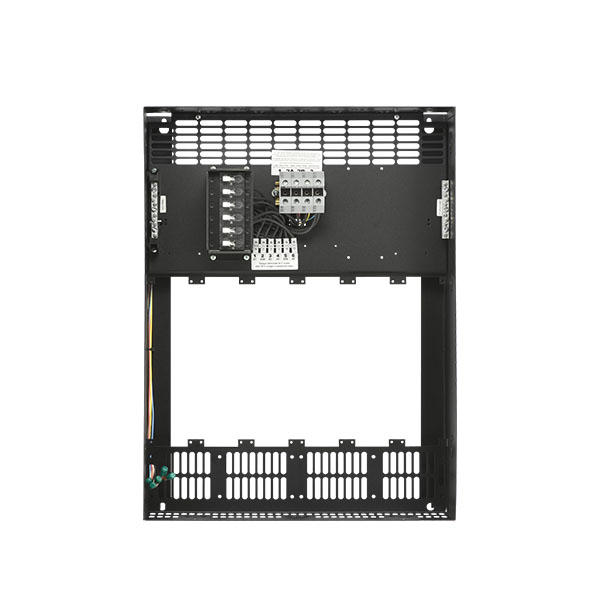

RDA-ENC6B 装置旨在牢固地安装 AMX 照明和 PROLink 控制器以及照明模块。此外，本产品还附带了 6 个断路器。本产品已通过 CE、UL 和 C-UL 认证。不仅具有用于多相接线的断路器和端子，而且还为 1/2"、3/4" 和 1" 导管提供 18 个敲落孔。

我们提供：

01一年质保02终身维护03免费系统搭配指导04免费工程师技术指导05签订合同法律保障

品牌：AMX型号：RDA-ENC6B国别：美国产地：美国适用场景：会议室、指挥中心、多功能...

我要购买：

台（库存 223 件）

尺寸（高宽厚）	24" x 18" x 6" (60.7 cm x 45.7 cm x 15.2 cm)
Dimensions From Center Lines	A to B = 16.0" (40.6 cm) B to C = 22.88" (58.1 cm)
重量	16.5 lbs (7.5 kg)
Configurations	ENC6B/120: 20 A Breakers ENC6B/240: 10 A Breakers
线路输入	140 A max per enclosure Input 1 feeds channels 1, 4, 7, and 10 Input 2a feeds channels 5 and 11 Input 2b feeds channels 2 and 8 Input 3 feeds channels 3, 6, 9, and 12 Breakers are UL 489 listed 10,000 AIC, 100% Switching Duty, Hydraulic-Magnetic
Wiring	Maximum input wire #1/0 AWG (50mm²) Maximum line input is 140 A (per enclosure ) Torque input wire to 44 in-lbs (5.0 N/m) Wire stripping length: 0.67 inches (17 mm)
FG Numbers	RDA-ENC6B

尺寸（高宽厚）	24" x 18" x 6" (60.7 cm x 45.7 cm x 15.2 cm)
Dimensions From Center Lines	A to B = 16.0" (40.6 cm) B to C = 22.88" (58.1 cm)
重量	16.5 lbs (7.5 kg)
Co nfigurations	ENC6B/120: 20 A Breakers ENC6B/240: 10 A Breakers
线路输入	140 A max per enclosure Input 1 feeds channels 1, 4, 7, and 10 Input 2a feeds channels 5 and 11 Input 2b feeds channels 2 and 8 Input 3 feeds channels 3, 6, 9, and 12 Breakers are UL 489 listed 10,000 AIC, 100% Switching Duty, Hydraulic-Magnetic
Wiring	Maximum input wire #1/0 AWG (50mm²) Maximum line input is 140 A (per enclosure ) Torque input wire to 44 in-lbs (5.0 N/m) Wire stripping length: 0.67 inches (17 mm)
FG Numbers	RDA-ENC6B
