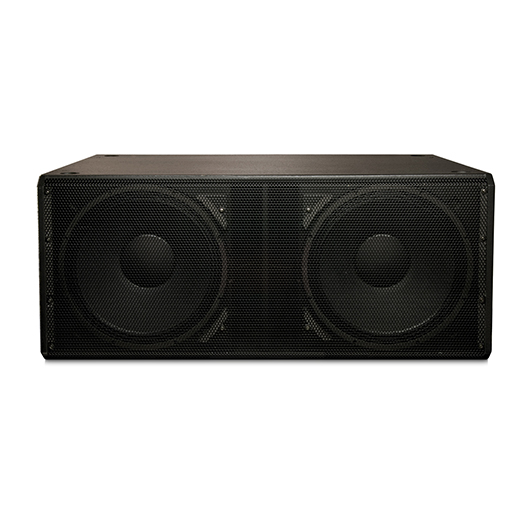

QSC GP218-SW 双18寸低音音箱
Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds
- 会员价：价格请咨询
- 市场价：价格请咨询
我们提供：
01一年质保02终身维护03免费系统搭配指导04免费工程师技术指导05签订合同法律保障
Features
-
Very high acoustic output capability: 140.5 dB SPL (1m) peak.
-
Tight musical "punch" combined with low-frequency extension down to 27.4 Hz.
-
Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles.
-
Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds.
-
18 mm birch ply enclosure with independent, dual chambers and extensive internal bracing for rigidity and solid, accurate reproduction.
-
Finish available in black.
-
Cinema-version available for surround LFE.
SPECIFICATIONS
GP218-sw
Configuration
2 × 18-inch vented subwoofer
Transducers
8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)
31.4 Hz to 240 Hz (without processing)
Frequency Range (-10 dB)
27.4 Hz to 1.2 kHz (without processing)
Nominal Impedance
4 ohms
Continuous Power Capacity
1700 W
Recommended Power
3000 to 4000 W
Sensitivity (1 W at 1 m)
101.5 dB
Maximum Output - Continuous / Peak (SPL at 1 m)
134.5 dB / 140.5 dB
Cabinet Type
Vented, rectangular enclosure
Enclosure Material
Baltic birch plywood / 18 mm
Finish
Finish available in black
Grille
14 gauge powder coated steel
Connectors
Two NL4 in parallel
Pin Outs
Pins
1+/1-Sub
2+/2-NC
Attachment Points
Sixteen (16) threaded M10 inserts
Dimensions (H×W×D)
508 × 1198 × 762 mm
20 × 47.17 × 30 in
Carton Dimensions (H×W×D)
660 × 1240 × 915 mm
26 × 48.8 × 36 in
Net Speaker Weight
86.6 kg / 191 lb
Shipping Weight
99 kg / 218.3 lb
Accessories Available (optional)
CRT-218-0 Wood cart
CVR-GP218 Cover
Features
-
Very high acoustic output capability: 140.5 dB SPL (1m) peak.
-
Tight musical "punch" combined with low-frequency extension down to 27.4 Hz.
-
Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles.
-
Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds.
-
18 mm birch ply enclosure with independent, dual chambers and extensive internal bracing for rigidity and solid, accurate reproduction.
-
Finish available in black.
-
Cinema-version available for surround LFE.
SPECIFICATIONS
GP218-sw
Configuration
2 × 18-inch vented subwoofer
Transducers
8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)
31.4 Hz to 240 Hz (without processing)
Frequency Range (-10 dB)
27.4 Hz to 1.2 kHz (without processing)
Nominal Impedance
4 ohms
Continuous Power Capacity
1700 W
Recommended Power
3000 to 4000 W
Sensitivity (1 W at 1 m)
101.5 dB
Maximum Output - Continuous / Peak (SPL at 1 m)
134.5 dB / 140.5 dB
Cabinet Type
Vented, rectangular enclosure
Enclosure Material
Baltic birch plywood / 18 mm
Finish
Finish available in black
Grille
14 gauge powder coated steel
Connectors
Two NL4 in parallel
Pin Outs
Pins
1+/1-Sub
2+/2-NC
Attachment Points
Sixteen (16) threaded M10 inserts
Dimensions (H×W×D)
508 × 1198 × 762 mm
20 × 47.17 × 30 in
Carton Dimensions (H×W×D)
660 × 1240 × 915 mm
26 × 48.8 × 36 in
Net Speaker Weight
86.6 kg / 191 lb
Shipping Weight
99 kg / 218.3 lb
Accessories Available (optional)
CRT-218-0 Wood cart
CVR-GP218 Cover
Features
-
Very high acoustic output capability: 140.5 dB SPL (1m) peak.
-
Tight musical "punch" combined with low-frequency extension down to 27.4 Hz.
-
Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles.
-
Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds.
-
18 mm birch ply enclosure with independent, dual chambers and extensive internal bracing for rigidity and solid, accurate reproduction.
-
Finish available in black.
-
Cinema-version available for surround LFE.
SPECIFICATIONS
GP218-sw
Configuration
2 × 18-inch vented subwoofer
Transducers
8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)
31.4 Hz to 240 Hz (without processing)
Frequency Range (-10 dB)
27.4 Hz to 1.2 kHz (without processing)
Nominal Impedance
4 ohms
Continuous Power Capacity
1700 W
Recommended Power
3000 to 4000 W
Sensitivity (1 W at 1 m)
101.5 dB
Maximum Output - Continuous / Peak (SPL at 1 m)
134.5 dB / 140.5 dB
Cabinet Type
Vented, rectangular enclosure
Enclosure Material
Baltic birch plywood / 18 mm
Finish
Finish available in black
Grille
14 gauge powder coated steel
Connectors
Two NL4 in parallel
Pin Outs
Pins
1+/1-Sub
2+/2-NC
Attachment Points
Sixteen (16) threaded M10 inserts
Dimensions (H×W×D)
508 × 1198 × 762 mm
20 × 47.17 × 30 in
Carton Dimensions (H×W×D)
660 × 1240 × 915 mm
26 × 48.8 × 36 in
Net Speaker Weight
86.6 kg / 191 lb
Shipping Weight
99 kg / 218.3 lb
Accessories Available (optional)
CRT-218-0 Wood cart
CVR-GP218 Cover
Features
-
Very high acoustic output capability: 140.5 dB SPL (1m) peak.
-
Tight musical "punch" combined with low-frequency extension down to 27.4 Hz.
-
Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles.
-
Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds.
-
18 mm birch ply enclosure with independent, dual chambers and extensive internal bracing for rigidity and solid, accurate reproduction.
-
Finish available in black.
-
Cinema-version available for surround LFE.
SPECIFICATIONS
GP218-sw
Configuration
2 × 18-inch vented subwoofer
Transducers
8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)
31.4 Hz to 240 Hz (without processing)
Frequency Range (-10 dB)
27.4 Hz to 1.2 kHz (without processing)
Nominal Impedance
4 ohms
Continuous Power Capacity
1700 W
Recommended Power
3000 to 4000 W
Sensitivity (1 W at 1 m)
101.5 dB
Maximum Output - Continuous / Peak (SPL at 1 m)
134.5 dB / 140.5 dB
Cabinet Type
Vented, rectangular enclosure
Enclosure Material
Baltic birch plywood / 18 mm
Finish
Finish available in black
Grille
14 gauge powder coated steel
Connectors
Two NL4 in parallel
Pin Outs
Pins
1+/1-Sub
2+/2-NC
Attachment Points
Sixteen (16) threaded M10 inserts
Dimensions (H×W×D)
508 × 1198 × 762 mm
20 × 47.17 × 30 in
Carton Dimensions (H×W×D)
660 × 1240 × 915 mm
26 × 48.8 × 36 in
Net Speaker Weight
86.6 kg / 191 lb
Shipping Weight
99 kg / 218.3 lb
Accessories Available (optional)
CRT-218-0 Wood cart
CVR-GP218 Cover
Features
-
Very high acoustic output capability: 140.5 dB SPL (1m) peak.
-
Tight musical "punch" combined with low-frequency extension down to 27.4 Hz.
-
Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles.
-
Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds.
-
18 mm birch ply enclosure with independent, dual chambers and extensive internal bracing for rigidity and solid, accurate reproduction.
-
Finish available in black.
-
Cinema-version available for surround LFE.
SPECIFICATIONS
GP218-sw
Configuration
2 × 18-inch vented subwoofer
Transducers
8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB)
31.4 Hz to 240 Hz (without processing)
Frequency Range (-10 dB)
27.4 Hz to 1.2 kHz (without processing)
Nominal Impedance
4 ohms
Continuous Power Capacity
1700 W
Recommended Power
3000 to 4000 W
Sensitivity (1 W at 1 m)
101.5 dB
Maximum Output - Continuous / Peak (SPL at 1 m)
134.5 dB / 140.5 dB
Cabinet Type
Vented, rectangular enclosure
Enclosure Material
Baltic birch plywood / 18 mm
Finish
Finish available in black
Grille
14 gauge powder coated steel
Connectors
Two NL4 in parallel
Pin Outs
Pins
1+/1-Sub
2+/2-NC
Attachment Points
Sixteen (16) threaded M10 inserts
Dimensions (H×W×D)
508 × 1198 × 762 mm
20 × 47.17 × 30 in
Carton Dimensions (H×W×D)
660 × 1240 × 915 mm
26 × 48.8 × 36 in
Net Speaker Weight
86.6 kg / 191 lb
Shipping Weight
99 kg / 218.3 lb
Accessories Available (optional)
CRT-218-0 Wood cart
CVR-GP218 Cover
Features
- Very high acoustic output capability: 140.5 dB SPL (1m) peak.
- Tight musical "punch" combined with low-frequency extension down to 27.4 Hz.
- Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles.
- Premium-grade, long-excursion, high-power woofers with 4", fiberglass voice coils, double layer spiders and triple-roll surrounds.
- 18 mm birch ply enclosure with independent, dual chambers and extensive internal bracing for rigidity and solid, accurate reproduction.
- Finish available in black.
- Cinema-version available for surround LFE.
|
SPECIFICATIONS
|
GP218-sw | |||
| Configuration | 2 × 18-inch vented subwoofer | |||
| Transducers | 8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly | |||
| Frequency Response (±3 dB) | 31.4 Hz to 240 Hz (without processing) | |||
| Frequency Range (-10 dB) | 27.4 Hz to 1.2 kHz (without processing) | |||
| Nominal Impedance | 4 ohms | |||
| Continuous Power Capacity | 1700 W | |||
| Recommended Power | 3000 to 4000 W | |||
| Sensitivity (1 W at 1 m) | 101.5 dB | |||
| Maximum Output - Continuous / Peak (SPL at 1 m) | 134.5 dB / 140.5 dB | |||
| Cabinet Type | Vented, rectangular enclosure | |||
| Enclosure Material | Baltic birch plywood / 18 mm | |||
| Finish | Finish available in black | |||
| Grille | 14 gauge powder coated steel | |||
| Connectors | Two NL4 in parallel | |||
| Pin Outs |
|
|||
| Attachment Points | Sixteen (16) threaded M10 inserts | |||
| Dimensions (H×W×D) |
508 × 1198 × 762 mm 20 × 47.17 × 30 in |
|||
| Carton Dimensions (H×W×D) |
660 × 1240 × 915 mm 26 × 48.8 × 36 in |
|||
| Net Speaker Weight | 86.6 kg / 191 lb | |||
| Shipping Weight | 99 kg / 218.3 lb | |||
| Accessories Available (optional) |
CRT-218-0 Wood cart CVR-GP218 Cover |
商品参数
| SPECIFICATIONS | GP218-sw |
|---|---|
| Co nfiguration | 2 × 18-inch vented subwoofer |
| Transducers | 8 ohm, 18-inch woofer with a 4-inch voice coil, ceramic magnet assembly |
| Frequency Respo nse (±3 dB) | 31.4 Hz to 240 Hz (without processing) |
| Frequency Range (-10 dB) | 27.4 Hz to 1.2 kHz (without processing) |
| Nominal Impedance | 4 ohms |
| Co ntinuous Power Capacity | 1700 W |
| Recommended Power | 3000 to 4000 W |
| Sensitivity (1 W at 1 m) | 101.5 dB |
| Maximum Output - Co ntinuous / Peak (SPL at 1 m) | 134.5 dB / 140.5 dB |
| Cabinet Type | Vented, rectangular enclosure |
| Enclosure Material | Baltic birch plywood / 18 mm |
| Finish | Finish available in black |
| Grille | 14 gauge powder coated steel |
| Co nnectors | Two NL4 in parallel |
| Pin Outs | Pins 1+/1-Sub 2+/2-NC |
| Attachment Points | Sixteen (16) threaded M10 inserts |
| Dimensions (H×W×D) | 508 × 1198 × 762 mm 20 × 47.17 × 30 in |
| Carton Dimensions (H×W×D) | 660 × 1240 × 915 mm 26 × 48.8 × 36 in |
| Net Speaker Weight | 86.6 kg / 191 lb |
| Shipping Weight | 99 kg / 218.3 lb |
| Accessories Available (optional) | CRT-218-0 Wood cart CVR-GP218 Cover |
