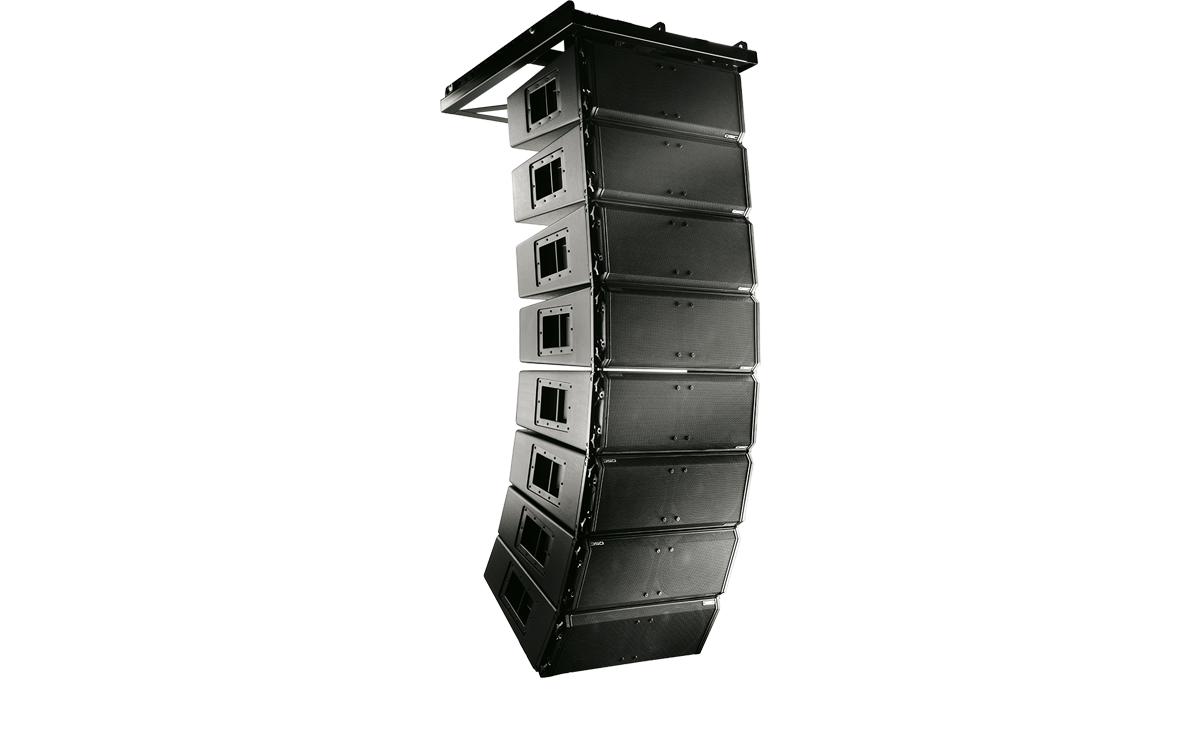

QSC WL2102-W 双10寸线阵音箱

Features

• Patented multiple aperture diffraction slot waveguide provides exceptionally wide horizontal coverage (140°) and a near ideal vertical line source.
• Exceptionally high output capability in a very compact form factor.
• May be operated as a bi-amplified or tri-amplified system. DSP settings are available on Q-SYS, SC-28, PLD amplifiers and CXD amplifiers.
• Dual 10-inch long-excursion, high-power, low-frequency transducers.
• Single 3-inch diaphragm neodymium compression driver.
• Birch ply enclosures. Available with standard finish in black.
• Fully captive hardware design incorporates all components necessary for box to box rigging.

SPECIFICATIONS	WL2102-w
Configuration	Biamp or Triamp mode
Transducers High Frequency Low Frequency	1.4-inch exit, 3-inch titanium diaphragm, neodymium magnet assembly 2 × 400 W, 16 ohm 10-inch woofer, 3-inch voice coil, ceramic magnet assembly
Frequency Response (±3 dB) Frequency Response (-10 dB)	55 Hz to 18 kHz (with recommended DSP processing) 48 Hz to 20 kHz (with recommended DSP processing)
Nominal Impedance	HF: 16 ohms LF biamp mode: 8 ohms LF triamp mode: 16 ohms (× 2)
Continuous Power Capacity	HF: 80 W (2 hours, AES1984-2 method, 1 to 10 kHz) LF biamp mode: 600 W (2 hours, AES1984-2 method, 80 to 800 Hz) LF triamp mode: 400 W (×2) (2 hours, AES1984-2 method, 80 to 800 Hz)
Max Recommended Power	HF: 300 W @ 16Ω LF bi-amp mode: 1400 W @ 8Ω LF tri-amp mode: 700 W @ 16Ω (x 2)
Sensitivity (1 W at 1 m)	HF: 107.5 dB (single cabinet measured in free space.) LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel)
Maximum Output (SPL at 1 m) Continuous: Peak:	HF: 127 dB / LF: 127 dB HF: 133 dB / LF: 133 dB
Maximum Output (dB SPL at 1 m) Continuous / Peak	HF: 126 dB / 132 dB LF: 122 dB / 128 dB
Nominal Coverage	Horizontal: 140° Vertical: Dependent on number of elements used
Enclosure
Cabinet Type	Ported, trapezoidal
Material	Baltic birch plywood
Finish	Available in standard black finish
Grille	Perforated, formed powder coated steel
Connectors	2 × Neutrik Speakon® NL8 in parallel
Pinout	Pins Bi-amp Tri-amp 1+/1- LF MF 2+/2- NC LF 3+/3- NC NC 4+/4- HF HF
Attachment Points	Integral, adjustable rigging system, vertical splay adjustable in 1° increments from 2 ° to 10° and 0°
Dimensions (H×W×D)	273 × 698.5 × 514.3 mm 10.75 × 27.5 × 20.25 in
Carton Dimensions (H×W×D)	280 × 711 × 533 mm 11 × 28 × 21 in
Net Weight	37.7 kg / 83 lb
Shipping Weight	42.6 kg / 93.9 lb
Accessories Available	AF2102-LA

Specifications are subject to change without notice.

Speakon is a trademark of Neutrik
